How to Specify Custom Captive Screws for Volume Supply

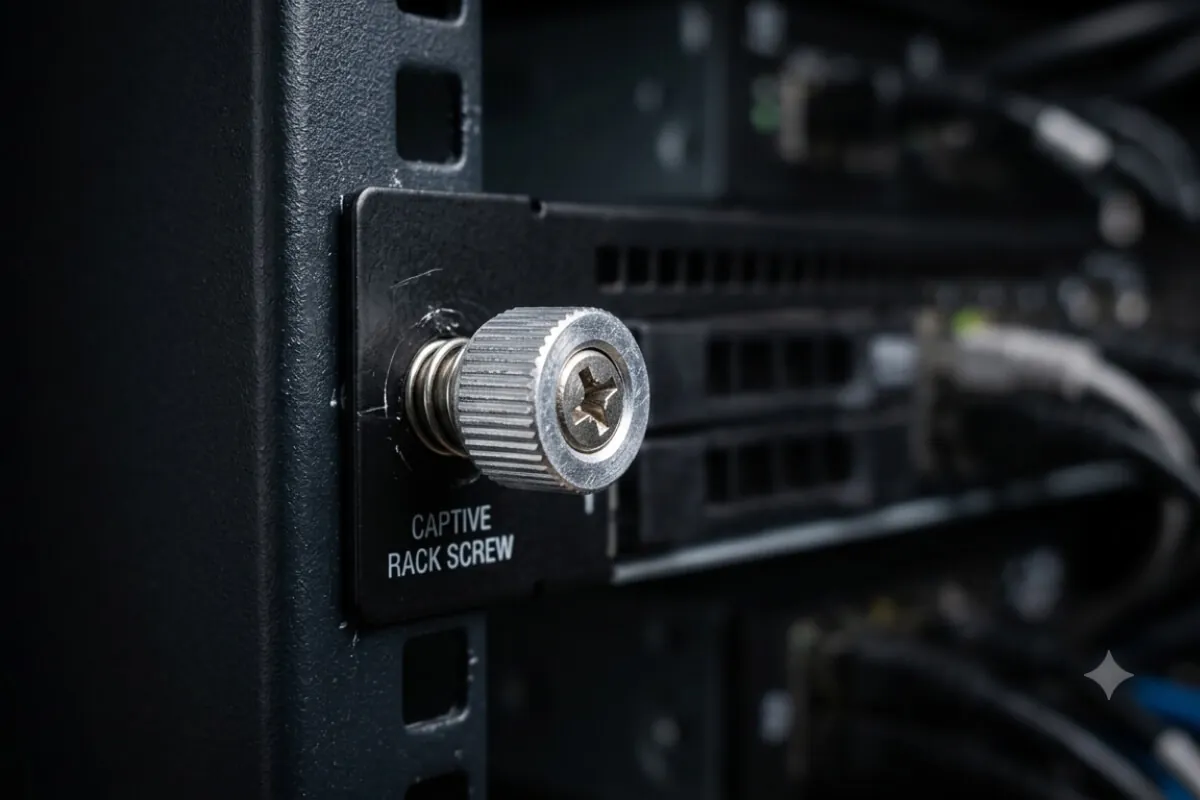

Custom captive screws are specified by retention method rather than by a standard, since no ISO or DIN standard covers them as a class. Cheng Hao makes them to drawing in stainless, carbon and alloy steel, with the retention method, panel thickness and float set by your print, and minimum order quantity assessed per part.
Table of Contents
That absence of a governing standard is what separates captive screws from the rest of a fastener project. A hex bolt can be ordered against a DIN number and arrive correct. Two captive screws with identical thread, length and head can behave differently in the same panel, because they are held in by different means, and the difference sits in a feature no standard names. Cheng Hao machines them alongside the rest of its precision machine screws range, for distributors, importers and OEM purchasing teams placing volume and repeat orders.
Which captive screw retention method should you specify?
Retention method determines the panel preparation, and on most projects the panel is already designed by the time the fastener is chosen. That order of events is why the method belongs on the drawing and not with the supplier, since a screw retained one way may require a tapped hole, while the same screw retained another way needs a plain hole with a chamfer.
| Retention method | How it holds | Panel preparation | Suits |
|---|---|---|---|
| Reduced shank | Shank under the head turned below the thread root, so the thread cannot re-engage once it has passed through | Tapped hole in the panel | Thin panels and simple assemblies where a thread already exists |
| Broached collar | Knurled or broached collar pressed in, displacing panel material into the knurl | Plain hole to a controlled diameter, in a ductile panel material | Volume assembly where the screw is installed once and remains in place |
| Flare-in retainer | Separate retainer or ferrule flared into the hole, with the screw riding inside it | Plain hole, retainer installed as a second part | Panels too hard or too thin to broach into |
| Spring loaded | Spring between head and panel holds the screw clear of the thread when released | Depends on how the retainer itself is held | Covers that have to lift clear, and gasketed panels |
Reduced-shank captive screws
The reduced shank is the simplest method and the one that asks least of the panel. Below the head, the shank is turned smaller than the root of the thread, so once the screw has been driven through a tapped hole the thread has nothing left to grip and the screw stays loosely in place. Geometrically it’s close to a shoulder screw. The general form of that family is specified in ISO 7379, though a captive screw’s shank is sized to clear a thread, not to carry a bearing load.
Broached and self-clinching retention
Broaching befits parts that are installed once during assembly and never removed. A knurled collar under the head is pressed into a plain hole, the panel material flows into the knurl, and the screw is then secured against rotation and against pull-out together. The method depends on the panel being more ductile than the screw. A hardened or heavily work-hardened panel won’t accept the collar, so the panel material and its condition are worth marking on the print.
Flare-in retainers
Where the panel can’t be broached, a separate retainer carries the screw, and the retainer is flared or staked into the hole. That adds a component and an operation. It’s also the method most likely to need the two parts quoted and inspected together, and whether you want the retainers supplied fitted or loose changes both the packing and the inspection.
Spring-loaded captive panel screws
A spring between the head and the panel pushes the screw clear of the tapped hole when it’s released, so the cover lifts away with the screw still retained in it. This is the method that costs most to make. The spring, the retainer and the screw all have to work as a set across the full tolerance stack, and it justifies that cost on covers opened regularly, and on sealed panels where the screw has to retract far enough to clear a compressed gasket.
What a custom captive screw drawing has to state
A captive screw drawing has to carry what a standard screw drawing does not: the retention method, the panel thickness range the screw must work across, and how much float it is allowed once fitted. Leave any of the three off and we can make the part exactly to the dimensions given and it will still be wrong in the panel. We query a missing item at quotation where we spot it, though a drawing that carries all three quotes faster.
Panel thickness range for each retention method
Every retention method works across a range of panel thickness, not at a single figure. State the range your project covers, including any variant panels, because a screw designed for one gauge will either fail to retain in a thinner panel or refuse to seat in a thicker one. When the same screw has to serve two thicknesses, both figures should appear on the drawing, and we’ll confirm whether one part can cover them.
Float, clearance hole and alignment
Float is the movement the screw is allowed in its retainer or hole once captive, and it determines whether a cover with several screws can be aligned by hand. With too little float, the last screw won’t align without force. Too much, and the head sits off center. This is one to give directly, in millimeters or inches, and not to leave to a general tolerance.
Head style, knurl and drive
Head style is determined by whether the screw is turned by hand, by tool, or by both. Knurled heads for hand operation follow the general form of DIN 464, which covers high-type knurled thumb screws, and we can combine a knurl with a slot or a socket where a tool has to complete the tightening. If the appearance matters, the knurl pattern is worth calling out, since a diamond knurl and a straight knurl feel different in the hand and photograph differently in a catalog.
Captive screws for sealed and vibration-exposed panels
A captive screw on a sealed cover has to retract far enough to clear the gasket at full compression, or the cover can’t be lifted without unthreading the screw, which removes the benefit of making it captive. Enclosures carrying an ingress rating to IEC 60529 have that gasket thickness fixed, so the screw travel has to be designed around it.
Gasket compression and screw travel
Give us the gasket’s compressed thickness, not its free thickness, since the free figure makes the travel look adequate when it isn’t. On spring-loaded parts the spring rate matters as much as the travel. A spring stiff enough to hold the screw clear can also make the cover harder to close than the assembly was designed for.
Thread locking and prevailing torque options
Panels that vibrate tend to lose clamp load before they lose the screw, which is the argument for specifying a locking feature even though a captive screw can’t fall out. We apply thread lock as a pre-applied surface treatment, working with Nylok, Precote, 3M and ND Industries so we can tailor the coating to the application instead of to whatever patch is on hand.
The range runs from re-usable nylon patches, such as Nylok, to microencapsulated chemical coatings for higher temperatures and heavier duty. A nylon patch works to around 121°C, or 250°F, above which the nylon softens. For anything hotter, or for a joint that has to hold a stated prevailing torque, our technical team will confirm the coating specification once we have the service temperature.
Ordering custom captive screws in volume
Minimum order quantity on a captive screw is assessed per part rather than set at a single figure, because the retention method alters how many operations the part takes and how much of it can run unattended. A reduced-shank screw is close to a turned part with one extra operation. A spring-loaded assembly carries components that we have to make, sort and assemble before we ship anything.
What drives the minimum order quantity
What moves it most is component count and whether the item needs assembly before packing, with material affecting it as well. Send the drawing and the annual volume you expect to run, and we’ll quote the minimum against the part rather than against a category. We typically dispatch custom parts in 30 to 75 days, and we produce a small batch of samples for your approval before full production begins.
Materials and finishes for captive screws
We machine stainless in SUS302, SUS304, SUS316 and SUS410, carbon steel in low, medium and high grades, alloy steel, aluminum, and brass or bronze. Finishes include zinc, yellow and black zinc, nickel plating, black oxide, anodizing and Ruspert silver.
Captive screws rarely arrive on a bill of materials alone. The custom machine screws around them, the custom CNC fasteners holding the same enclosure together, and micro screws down to M0.6 for the boards inside it can be quoted on one drawing package, which keeps a single inspection standard across the assembly.
FAQ
What retention method should I specify for a captive screw?
Reduced-shank retention suits panels that are already tapped and is the least exacting to make. Broached collars suit ductile panels in volume assembly, flare-in retainers suit panels too hard or thin to broach, and spring-loaded types suit covers that have to lift clear or that sit on a gasket. State the panel material and thickness on the drawing and Cheng Hao will confirm which methods that panel will take.
Do you make custom captive screws to a drawing?
Yes. Cheng Hao makes non-standard fasteners to a supplied drawing, working from a CAD or STEP file or a fully dimensioned diagram. State the retention method, panel thickness range, float, thread, head style and finish, and we quote the minimum order quantity against that part.
What is the minimum order quantity for custom captive screws?
Cheng Hao assesses minimum order quantity per part. Component count and whether the item needs assembly before packing both move it, along with the material, so a single figure across the range would be misleading. We quote it once we have seen the drawing and your expected annual volume.
Can you supply captive screws in metric and inch threads?
Yes. Cheng Hao produces to DIN, ISO, JIS, BSW, IFI and UTS callouts, so we can quote metric and inch versions from the same drawing package. We would rather work from your original drawing than from a converted one, because rounded conversions conceal the tolerances you intended.
How long does a first order of custom captive screws take?
Cheng Hao typically dispatches custom parts in 30 to 75 days, depending on quantity, material and finishing. We produce a small batch of samples for your approval before full production, and each delivery carries an inspection certificate.
Are your captive screws certified?
Cheng Hao’s quality management system is certified to ISO 9001, and some products also carry CE marking. Each delivery includes an inspection certificate, and we can agree inspection reports covering specific dimensions at the quotation stage.
Cheng Hao machines custom captive screws and the fasteners around them at its Taoyuan operation, working from your drawing rather than from a catalog range. If the retention method on your panel is still open, a print with the panel material and thickness marked is enough for us to quote against, and we produce samples for approval before anything runs.
